Matsuura H.Plus-630

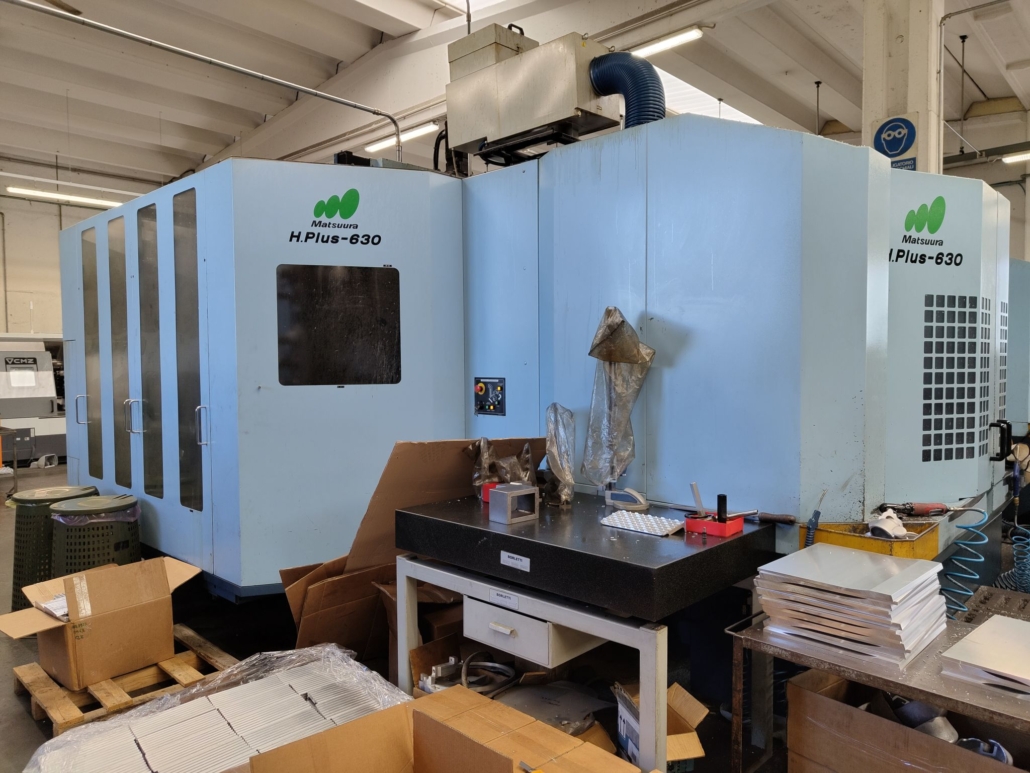

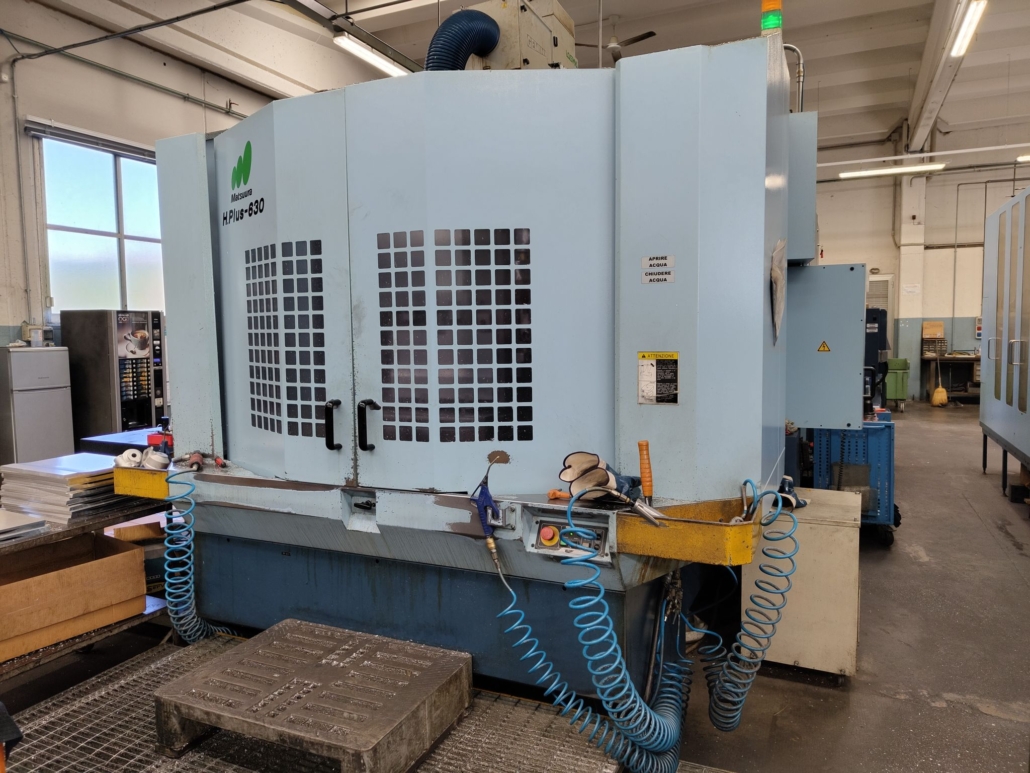

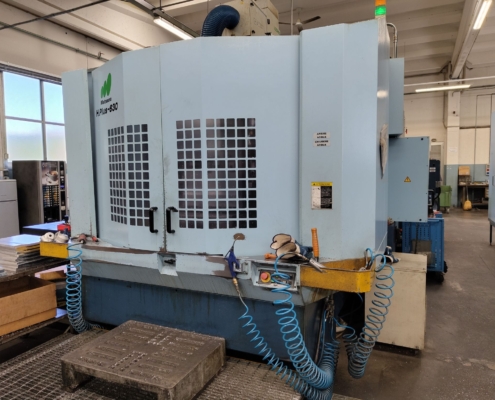

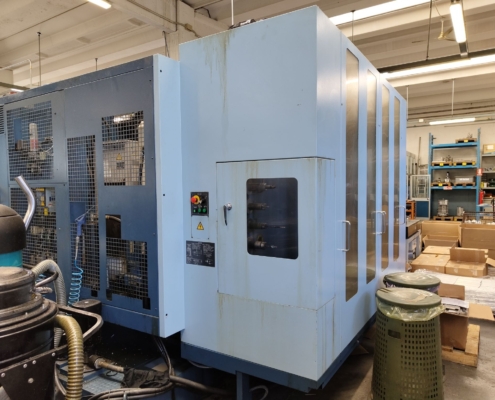

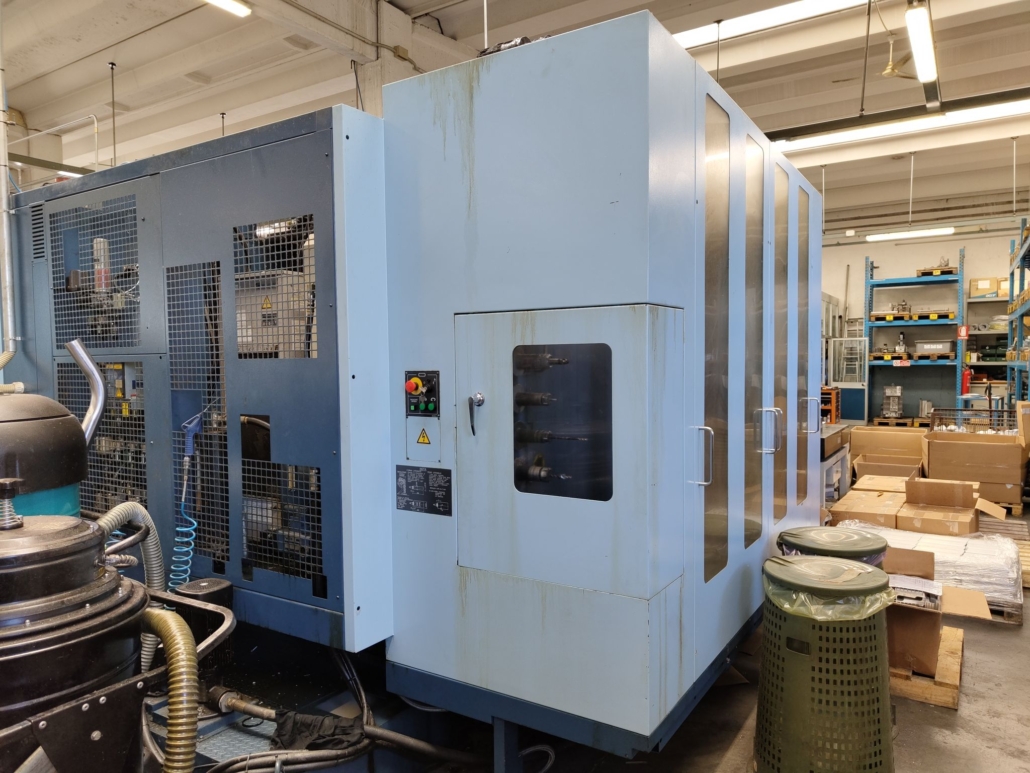

Horizontal Machining Center MATSUURA H.PLUS-630

TYPE: 4 axis CNC horizontal machining center
BRAND: MATSUURA
MODEL: H.PLUS-630
YEAR: 2007

Horizontal machining center with 630 mm pallet changer, complete B-axis, high pressure, 70 bar through-spindle coolant, 1600 liter oversized tank, chip conveyor, tool setting. 60 BT50 Big Plus tools. 12,000 rpm. Excellent condition, immediate availability, year 2007, installation 2008. 8000 spindle hours, aluminum only!

TECHNICAL SPECIFICATIONS

MATSUURA H-PLUS 630 horizontal machining center
Year 2007 – Installation 2008
Approximately 8,000 working hours

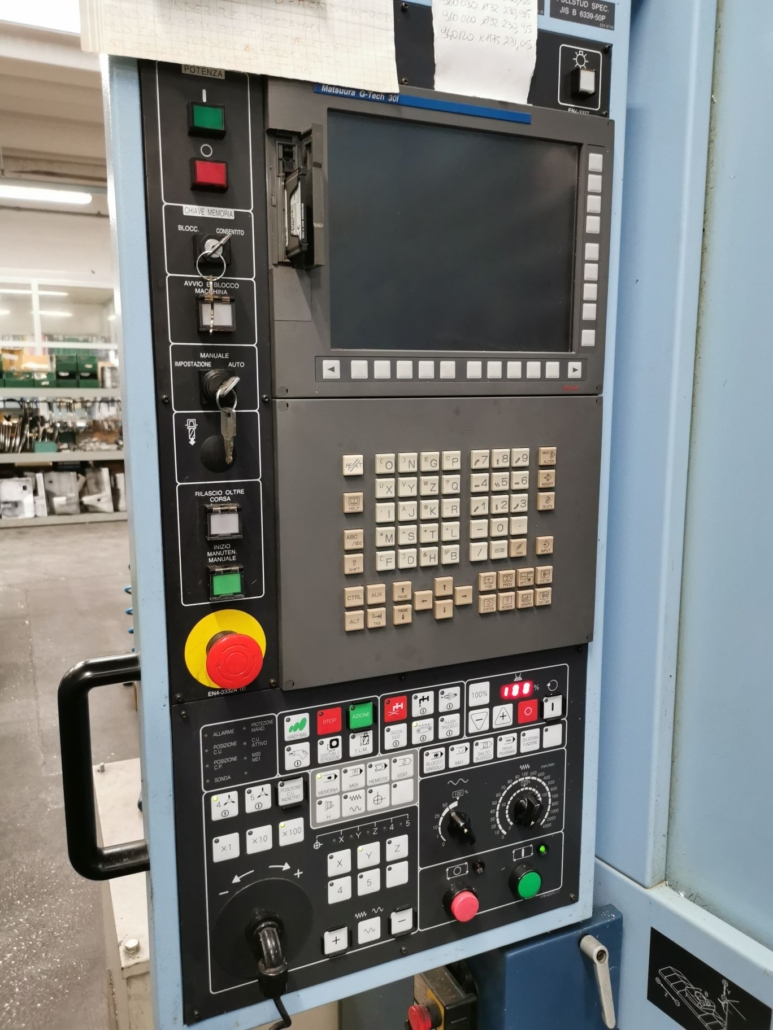

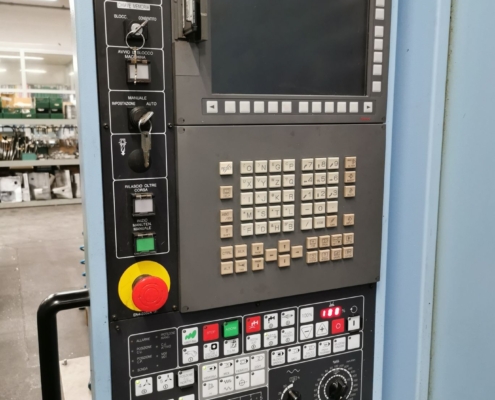

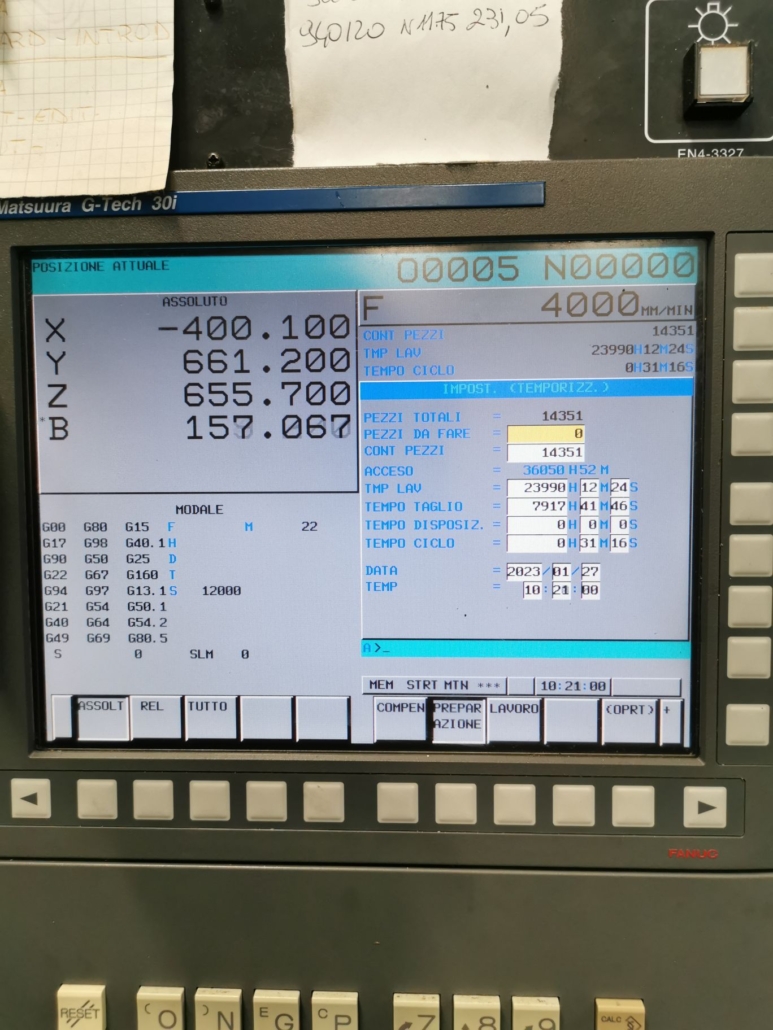

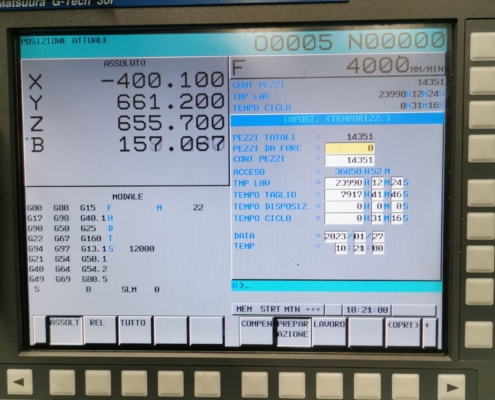

CNC Fanuc G-Tech 30i

AXES
X-axis 1050 mm
Y-axis 920 mm
Z-axis 870 mm

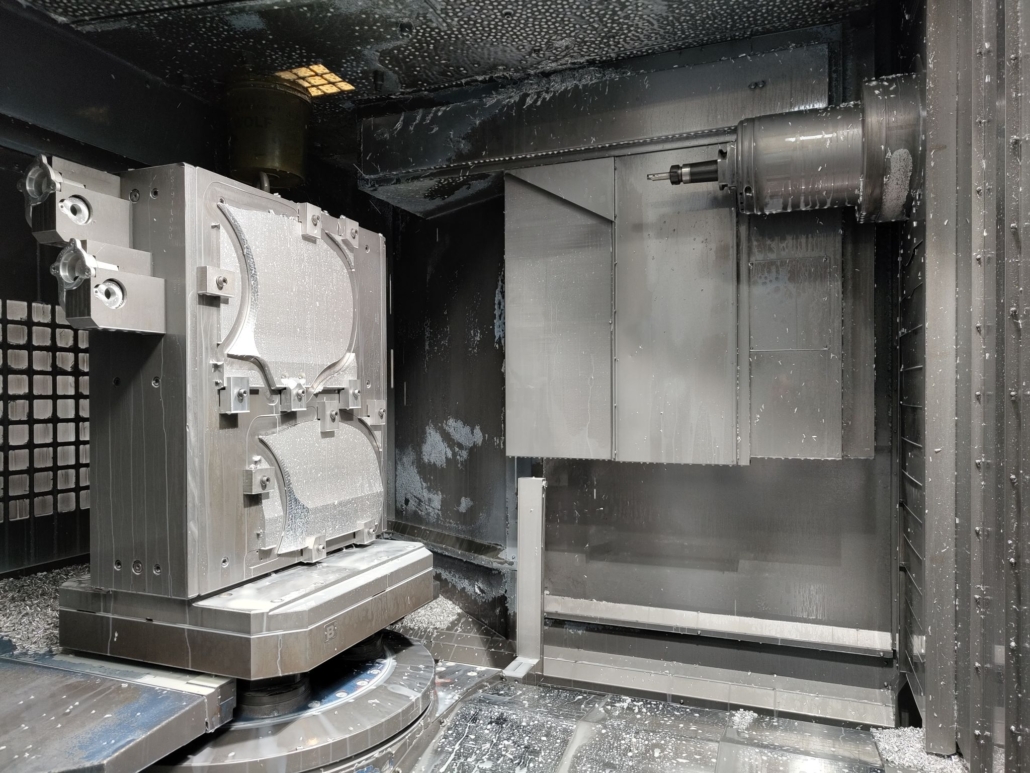

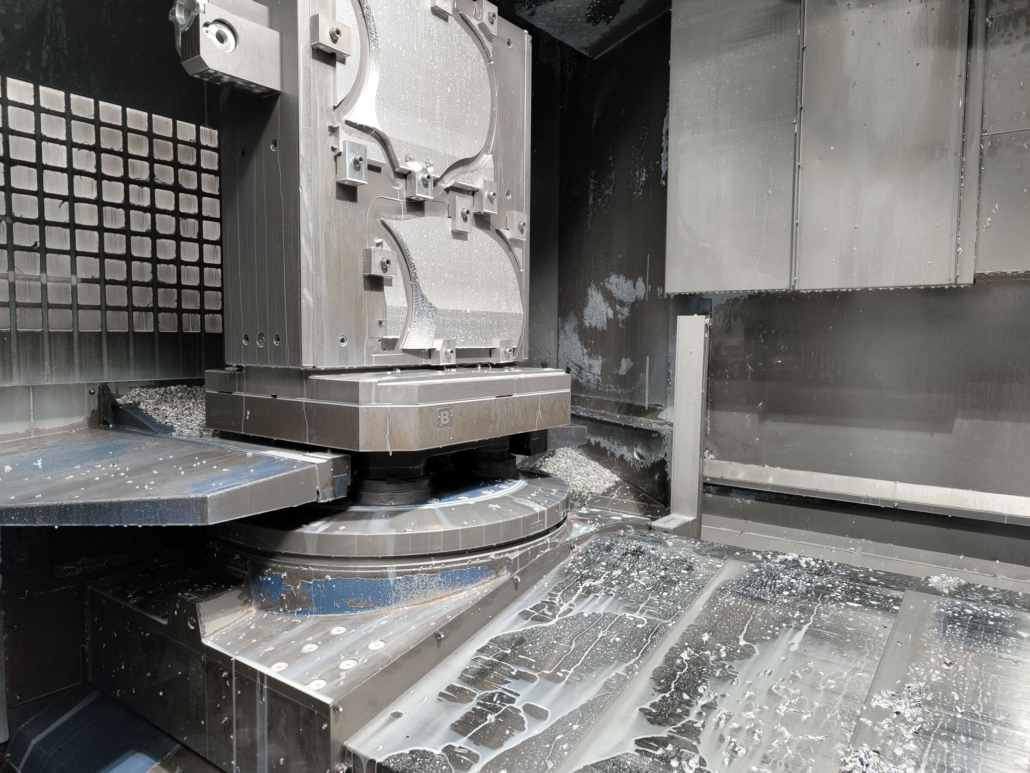

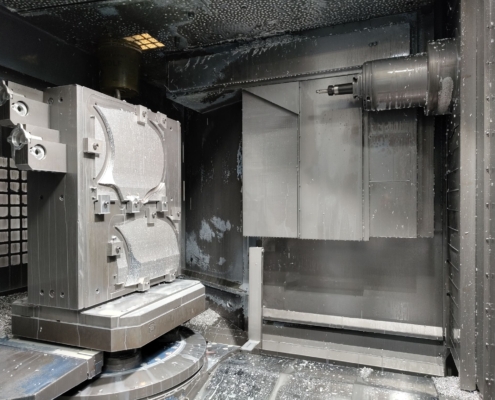

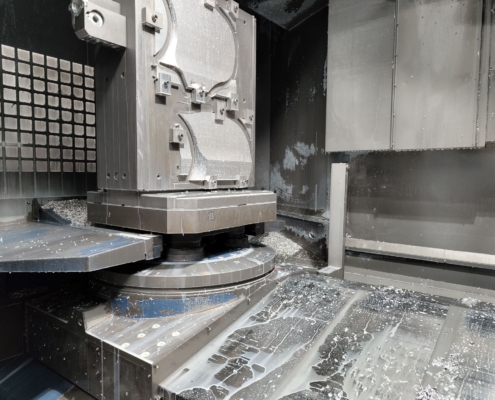

PALLET
Pallet size 630 x 630 mm
Max permissible weight 1,200 kg
Max piece size diam. 1,050 x 1,000 mm
Pallet changer with 2 positions
Continuous B-axis 360,000 positions (accuracy 0.001°)

SPINDLE
Hitech technology
Speed range 45 – 12,000 rpm
Front bearing diameter 100 mm
BT50 Big Plus attachment
Motor power 26/30 kW
Max spindle torque 451 Nm
Refrigerator head cooling unit

FEEDS
Rapid movement speed (X/Y/Z) 50 m/min
Work feed (X/Y/Z) 1 – 50.000 mm/min

AUTOMATIC TOOL CHANGER
Tool magazine capacity 60 positions
Max tool diameter 110 mm
Max tool diameter (with empty adjacent pockets) 230 mm
Max tool length 500 mm

ACCESSORIES
High pressure through the spindle at 70 bar

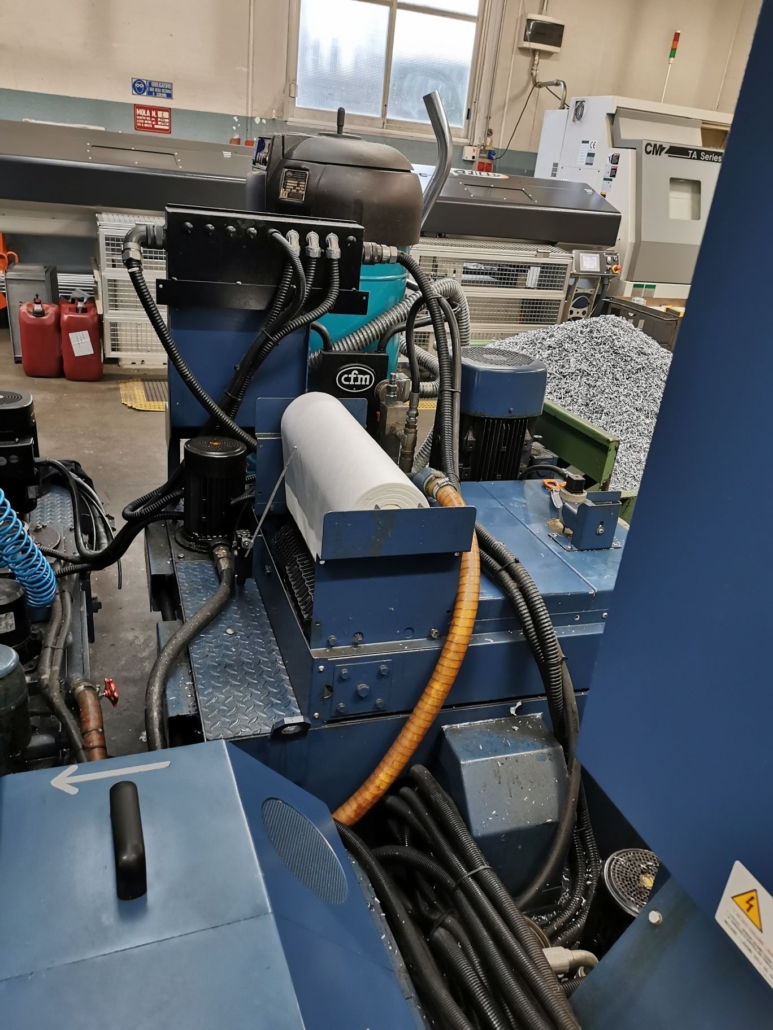

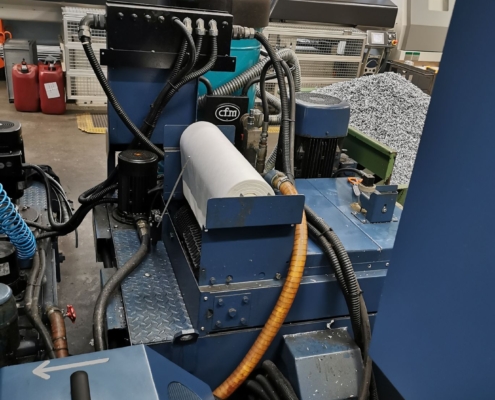

Paper filter
Oversized tank 1650 lt
Linear scales
Cascade washing shower

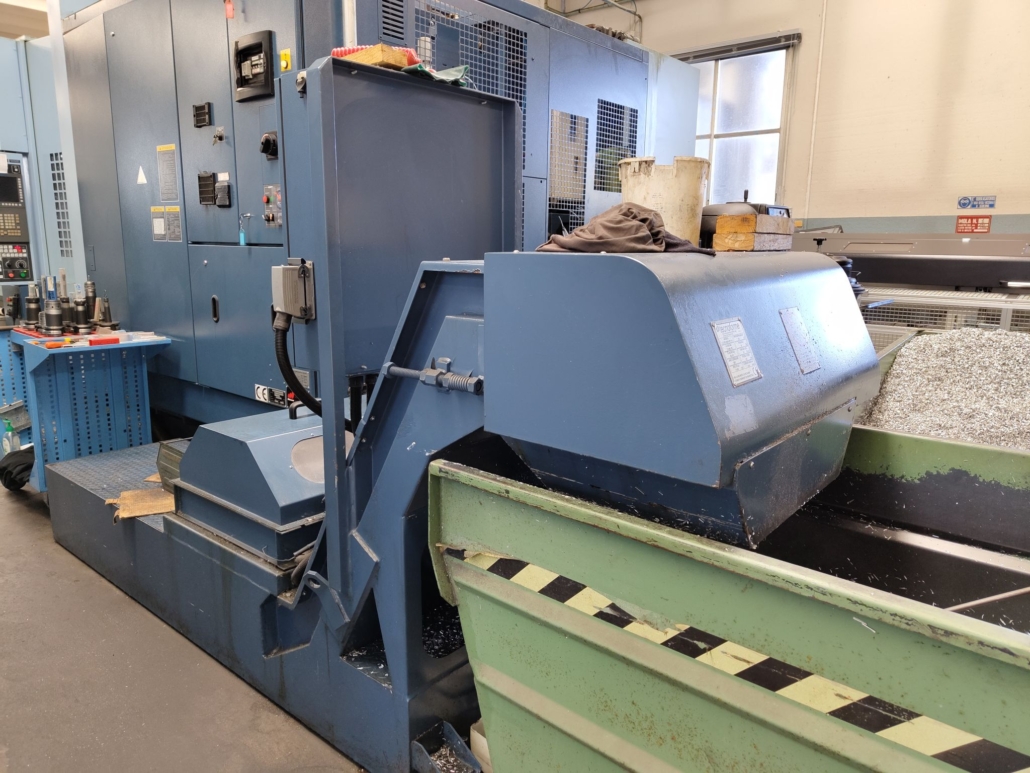

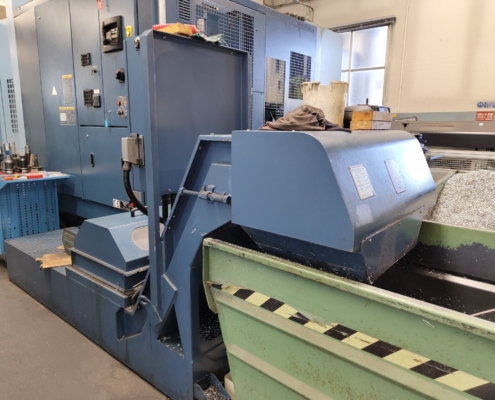

Spiral chip conveyor
Standard chip conveyor
Synchronized tapping
Losma fume aspirator
Renishaw probe
Tool wear management
Shear force monitoring

3 extra pallets

Data subject to possible revisions, not binding
